Ball Mill

The Description and Function of Ball Mill：

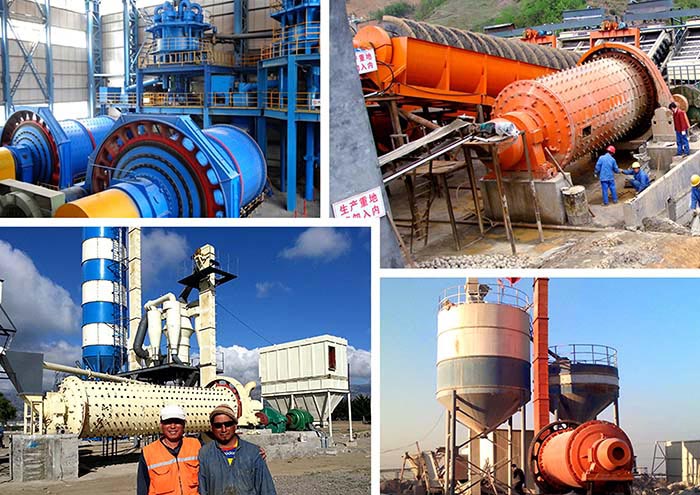

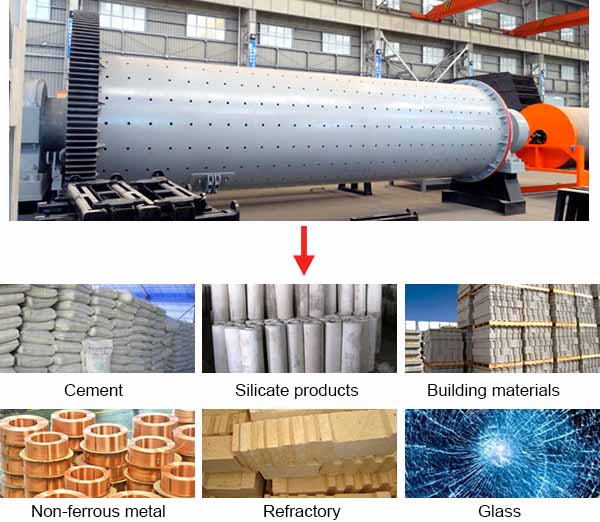

Ball mill is the key equipment for recrushing the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.

The Inner Structure and Main Types of Ball Mill:

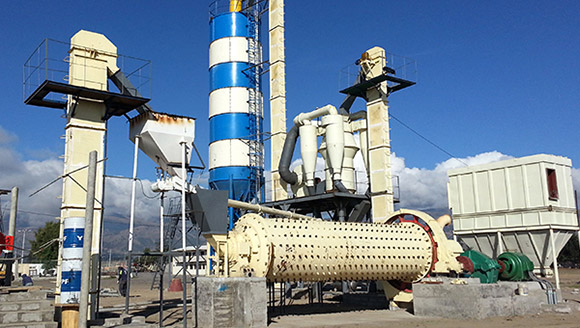

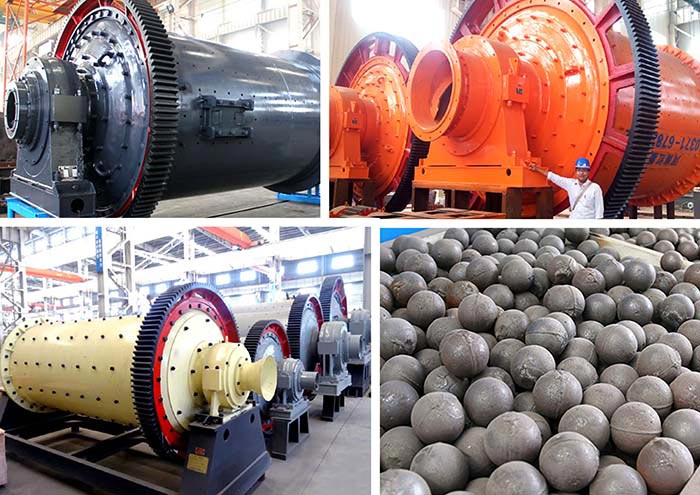

Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. According the materials and discharging method, ball mill can be divided into dry type ball mill and wet type lattice ball mill.

Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.

According the materials and discharging method, ball mill can be divided into dry type ball mill and wet type lattice ball mill.

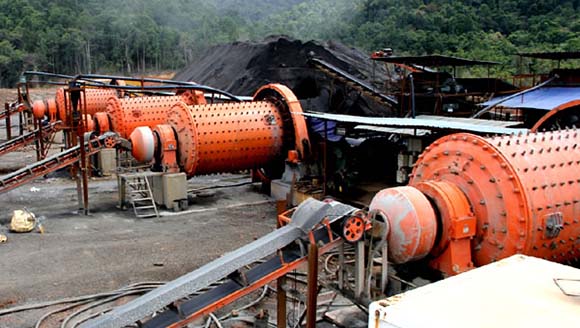

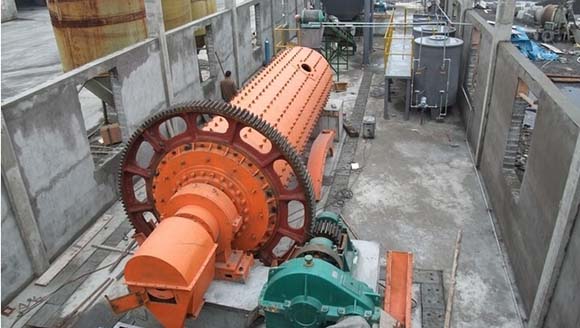

This machine is a horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the single-layer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.

Technical data

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	≤25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	≤25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	≤25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	≤25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	≤25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	≤25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	≤25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	≤25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	≤25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	≤25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	≤25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	≤25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	≤25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	≤25	0.074-0.4	148-615	4500	525
