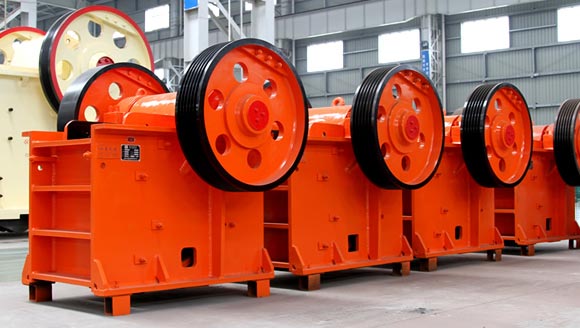

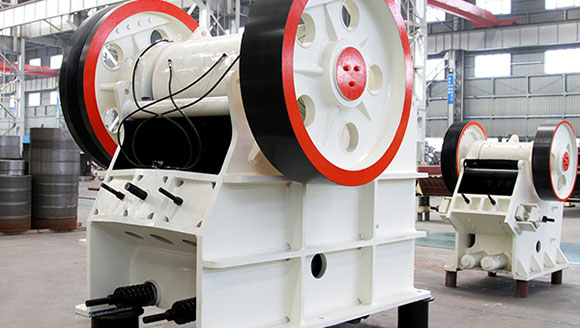

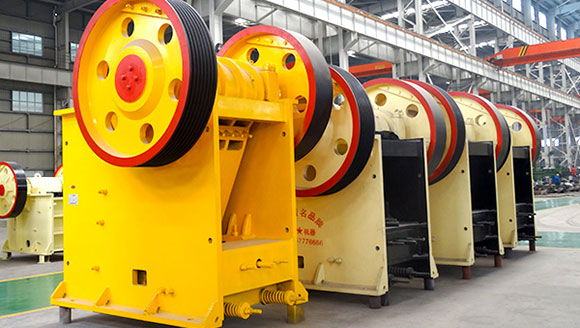

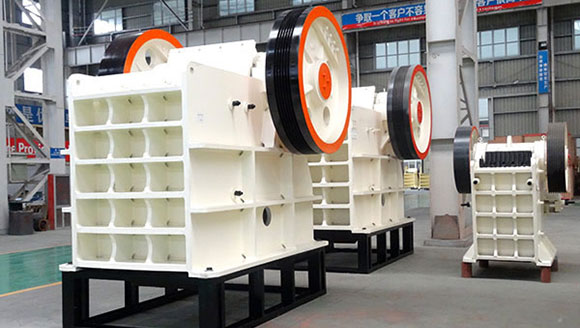

Primary Crusher

The Application and Function of Primary Crusher:

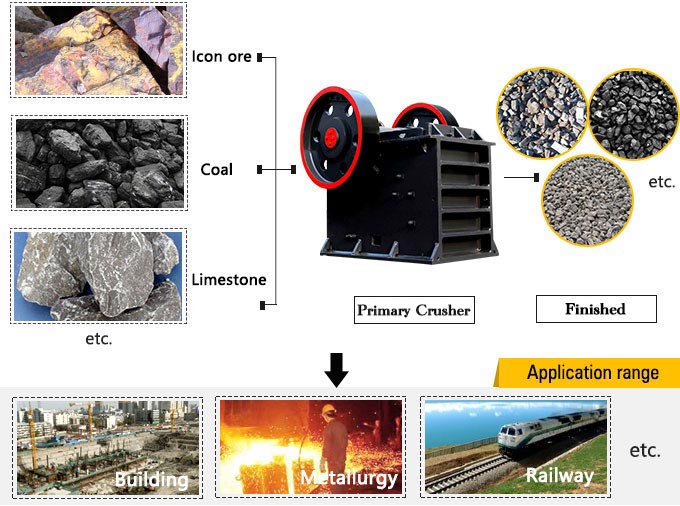

Primary crusehr can be widely applied in mining, metallurgy, architecture, highway, railway, water conservation, chemical industry and other industries, for different ores and big materials medium crushing.

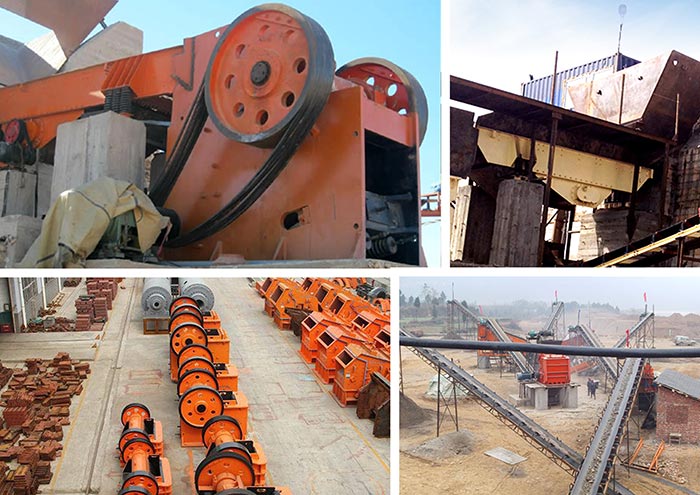

Primary crusher is suitable for:

1. Both stationary and mobile process

2. Surface and underground applications

3. Mining companies, major quarries

4. Medium and large scale contractors

The Working Process of Primary Crusher:

Through the motor wheels, the eccentric shaft is driven by the triangle belt and slot wheel,which make the movable jaw plate keeps moving by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and cheek plate can be crushed and discharged through the discharging opening.

1. It adopts world-level manufacturing technology and high-end manufacturing materials.

2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly uses high-quality steel casting and drives through two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock which makes JC series jaw crusher have extraordinary reliability.

3. The bearing pedestal adopts unitary cast steel structure. The unitary cast steel bearing pedestal can ensure comprehensive fitting with the crusher rack, and at the same time, greatly increase the radial strength of the bearing pedestal, whereas split type bearing pedestal does not have these advantages.

The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

Technical data

Model	Feed opening (mm）	Max.feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions （L×W×H） (mm)
PE-150×250	150×250	125	10-40	1-3	250	4P   5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	4P   7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	4P   11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-21	300	6P   15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	6P   30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	6P   55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	6P   55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-160	250	6P   55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	8P   110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	8P   110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	8P   110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	8P   110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	8P   110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-380	200	8P   110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	8P   110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	6P   160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	8P   280-355	139	5160×3660×4248
PEX-150×750	150×750	120	18-48	8-25	320	4P   15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	6P   22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	6P   30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	6P   37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	6P   55	15.6	2720×1950×1600
