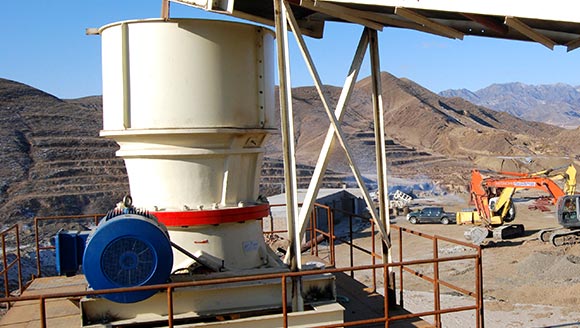

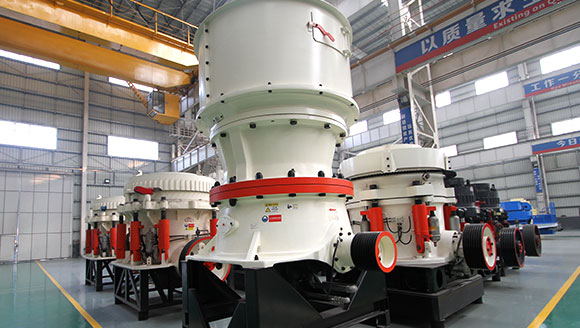

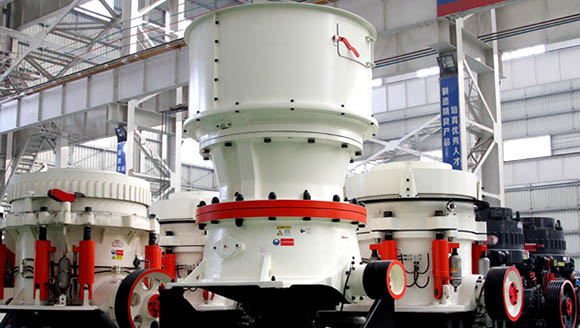

Single Cylinder Cone Crusher

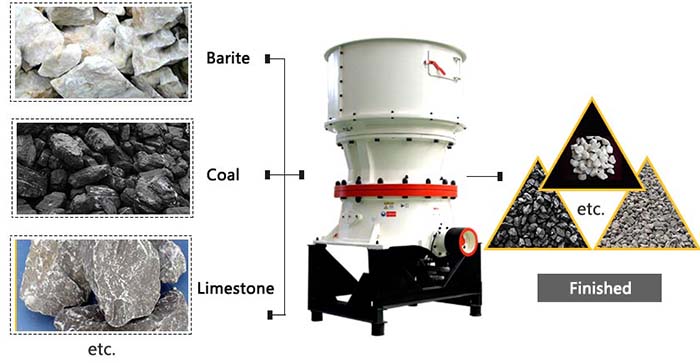

The Handling Materials and Application of Single Cylinder Cone Crusher:

Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium, construction, water and electricity, transportation, chemistry and building material industry.

The Advantages and Benefits of Single Cylinder Cone Crusher:

1. High efficiency.

2. Big production capacity.

3. High-quality final products.

4. Multiple cavity medium and fine crushing.

1. High efficiency. This hydraulic cone crusher has supporting device on both upper end and lower end of the principle axis, so that it can sustain bigger crushing force and stroke, plus the special crushing chamber corresponding to the lamination principle, making it have higher crushing efficiency.

2. Big production capacity. This hydraulic cone crusher perfectly integrates with crushing stroke, crushing speed and the shape of the crushing chamber, so that when the diameter of the big end of the movable cone is the same, the productivity of this cone crusher is improved by 35%~60% compared with that of traditional spring cone crusher.

3. High-quality final products. This hydraulic cone crusher uses unique crushing cavity and lamination crushing principle to produce crushing effect between particles, so that the cubic particles in the final products accounts higher proportion and the granularity is evener.

Technical data

SC-S series of single cylinder hydraulic cone crusher parameters:

Model	cavities	Maximum Feeding Size（mm）	Minimum Discharging Size（mm）	install Power（kw）	capacity（t/h）
SC(S)100	C1	250	22	90	85-170
	C2	200	19	90	70-130
SC(S)160	C1	360	25	160	125-345
	C2	300	22	160	108-305
SC(S)250	C1	450	35	250	267-605
	C2	400	29	250	225-515
SC(S)315	C1	560	41	315	349-1050
	C2	500	38	315	318-892

Technical parameters of SC series single cylinder hydraulic cone crusher:

Model	cavities	Maximum Feeding Size（mm）	Minimum Discharging Size（mm）	install Power（kw）	capacity（t/h）
SC100	F1	150	10	90	45-135
	F2	90	10	90	43-118
	F3	50	6	90	36-71
SC160	F1	200	13	160	69-215
	F2	115	10	160	57-184
	F3	75	8	160	63-126
SC250	F1	215	16	250	116-396
	F2	140	13	250	97-328
	F3	70	8	250	95-252
SC315	F1	275	16	315	177-662
	F2	175	16	315	162-552
	F3	85	13	315	195-401
SC560	F1	300	22	560	448-1512
	F2	195	19	560	380-1373
	F3	90	13	560	357-912
SC750	F1	370	25	750	394-2181
	F2	300	19	750	342-2020
	F3	230	16	750	267-1814
	F4	120	13	750	248-1165
	F5	85	10	750	185-1170
