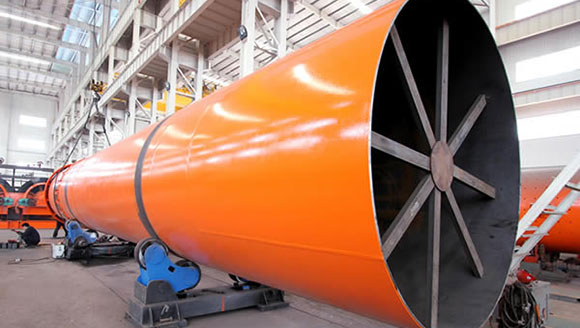

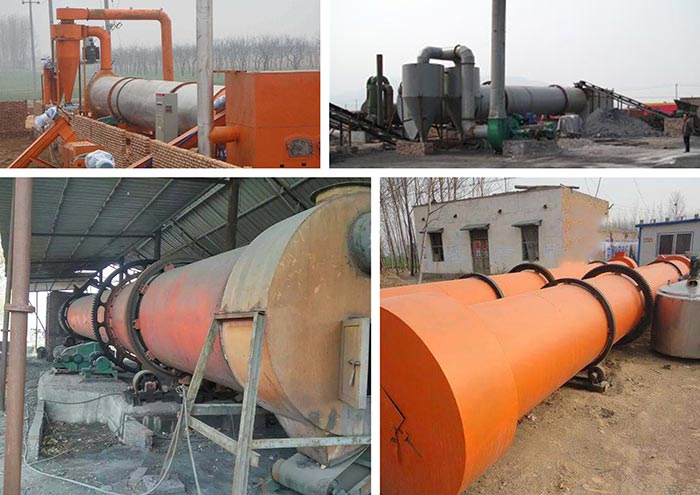

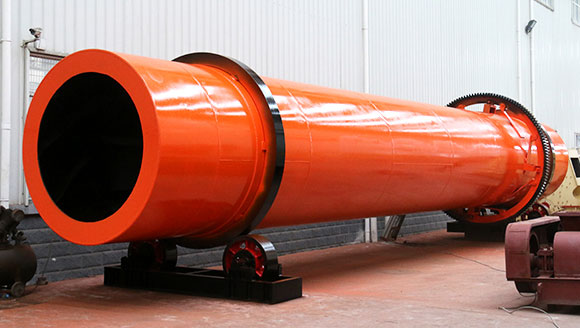

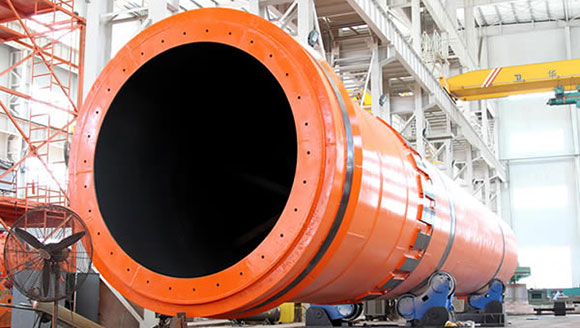

Wood Dryer

The Handling Materials and Description of Wood Dryer:

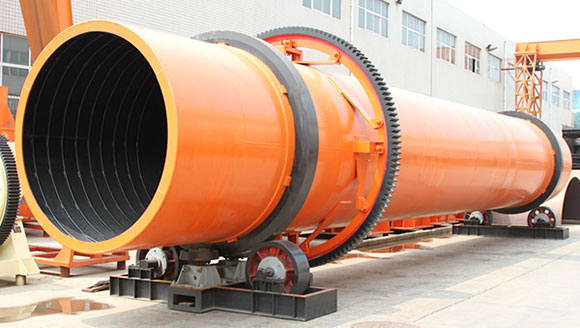

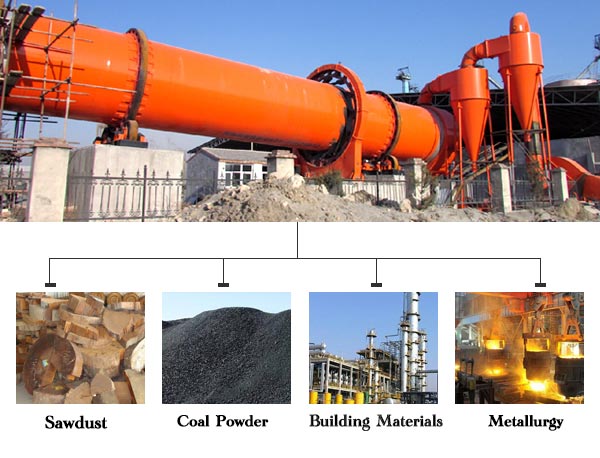

Wood Dryer is used to dry the materials such as wood, sawdust, slurry, limestone, coal powder, clay in building materials, metallurgy, chemical industry and cement industry, which is mainly made up of the rotor, lifting plate, transmission device, support device, etc.

The Performance Characteristics of Wood Dryer:

1. Dry strongly and shortly. The moisture in the after-drying wood is even and steady.

2. Large handling capacity and high heat efficiency. When drying unbound water, its heat efficiency can reach 60%.

3. Big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost and time.

The Performance Characteristics of Wood Dryer:

1. Dry strongly and shortly. The moisture in the after-drying wood is even and steady.

2. Large handling capacity and high heat efficiency. When drying unbound water, its heat efficiency can reach 60%.

3. Big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost and time.

Technical data

Spec./m (Dia.×Length）	Shell Cubage （m³）	Capacity （t/h）	Installation Obliquity （%）	Highest Inlet Air Temperature （℃）	Main Motor （kw)	Weight （t）
Φ1.2×8.0	9.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	11.3	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	21.2	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	24.7	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	26.5	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	30.5	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	35.6	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	45.6	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	53.2	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	60.8	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	63.3	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	81.4	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	90.4	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	99.5	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	127.4	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	141.3	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	176.6	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	201	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	285	60.8～76.0	3～5	700～800	160	135

Technical parameters of indirect heat dryer:

Shell  diameter ×shell  Length   Items	Inside  diameter  of outer  shell （mm）	Inside  diameter  of inner  shell （mm）	Shell  Length （m）	Shell  cubage （m³）	Shell  obliquity	Lifting  blade  form	Highest  inlet air  temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15
