Bucket Elevator

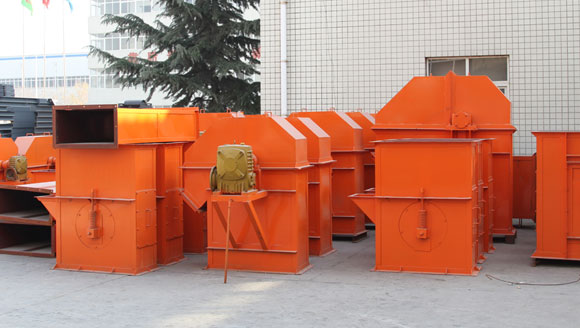

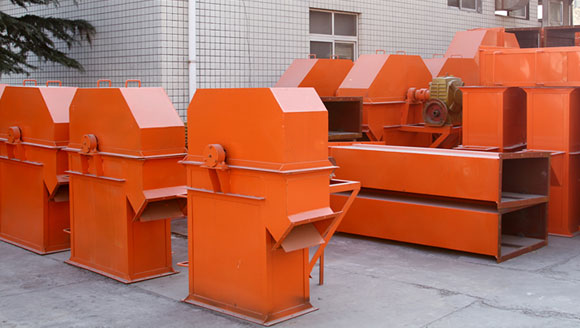

The Advantages and Description of Bucket Elevator:

This elevator has the advantages of big conveying amount, high elevating height, stable and reliable operation and long service. Its main performance and parameters conform to the JB3926----85 Vertical Bucket Elevator (this standard equivalently refers to international stand and foreign advanced standard), and the hauling round-link chain conforms to the MT36----80 Mine High Strength Round-link Chain.

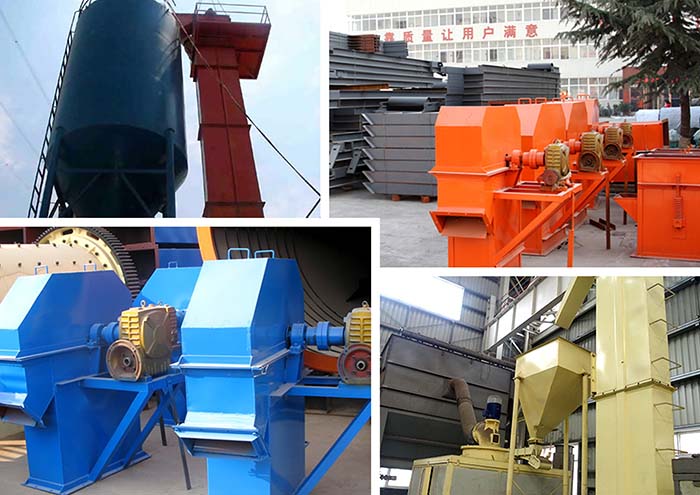

The Handling Materials of Bucket Elevator:

This elevator is suitable for elevating powdery, granulate and small-sized non-corrosive materials such as coal, cement, stone, sand, clay and ore. Since the hauling device of the bucket elevator is circuit chain, it is allowed to elevate the materials with relatively high temperature.

1. The driving power of bucket elevator is small, and it adopts in-flow feeding, guiding discharging and large-capacity hopper. When the materials are elevated, there is almost no returning, so that the reactive power is small.

2. Bucket elevator had wide elevating ranges. This type of bucket elevator has few requirements for the types and property of the materials and it can not only elevate general powdery and granulate materials, but elevate materials with high corrosion, and what is more, it has fine sealing performance and little pollution.

3. Bucket elevator has stable and reliable operation. Advanced designing principle and processing method ensure the reliable operation of this machine and the trouble-free time exceeds 20,000 hours.

4. Bucket elevator has long service life. During the designing process, the designers make sure that there is almost no materials scattering in the feeding and discharging process, thus reducing the abrasion of the machine.

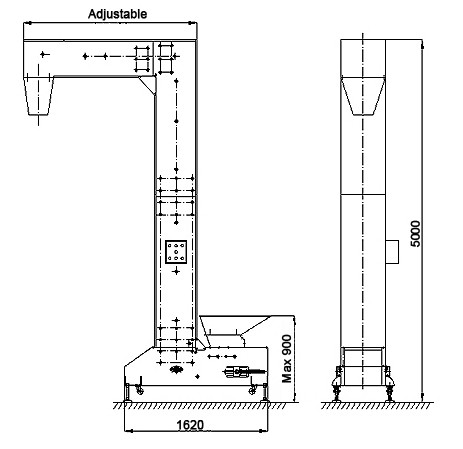

The materials are scooped up by the hopper and brought to the top along with the conveyor belt or conveyor chain, and then the materials will roll down after bypassing the top wheel, and the bucket elevator will pour the materials to the receiving chute. The driving belt of bucket elevator with driving belt often uses rubber belt which is installed on the upper or lower transmission drum and the upper or lower redirection transmission drum. Bucket elevator with chain drive is often installed with two parallel transmission chains, and there is a pair of transmission sprocket on the lower or upper part and a redirection chain wheel on the upper or lower part. Bucket elevator is often installed with enclosure to avoid dust pollution.

Technical data

Technical parameters of ring chainbucket elevator

Specification	Max.lifting height (m)	Conveying capacity (m³/h)	Max.size (mm)	Pitch of buckets (mm)	Motor prower （kw）
TH160	25	7-12	15-20	400	3-4
TH200	28	8-15	20-30	500	3-5.5
TH250	30	10-25	25-35	500	4-7.5
TH300	30	25-35	30-40	500	5.5-11
TH315	40	30-40	35-45	512	5.5-15
TH400	40	45-60	40-55	512	11-22
TH500	40	65-80	50-60	512	15-30
TH630	40	100-120	60-65	688	18.5-37
TH800	40	130-150	65-75	920	22-45

Technical parameters of wire belt bucket elevator

Specification	Max.lifting height (m)	Conveying capacity (m³/h)	Max.size (mm)	Bucket Volume (L)	Motor prower （kw）
TDG160	80	34	0-20	2.6	2.2-11
TDG200	80	45	0-25	4.1	3-15
TDG250	80	71	0-30	6.5	5.5-22
TDG315	80	101	0-35	10	7.5-30
TDG400	80	158	0-40	16	15-45
TDG500	80	218	0-45	25	18.5-55
TDG630	80	345	0-50	40	30-90
TDG800	80	491	0-50	61	45-132

Plate chain bucket elevator

Specification	Max.lifting height （m）	Max.lifting capacity （m³/h）	Percentageallowed （%）					Pitch （mm）	Motor power （kw）
			10	25	50	75	100
			Max.size（mm）
NE15	40	16	65	50	40	30	25	101.66	1.5-4
NE30	59	31	90	75	58	47	40	152.4	2.2-7.5
NE50	62	60	90	75	58	47	40	152.4	3-15
NE100	58	110	130	105	80	65	55	200	7.5-30
NE150	65	170	130	105	80	65	55	200	11-37
NE200	73	220	170	135	100	85	70	250	18.5-75
NE300	61	320	170	135	100	85	70	250	22-75
NE400	47	420	205	165	125	105	90	300	45-90
NE500	58	500	240	190	145	120	100	300	45-132
