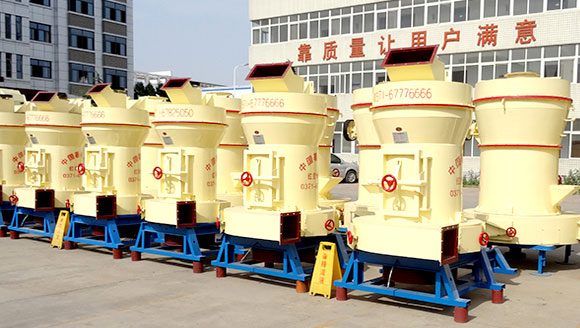

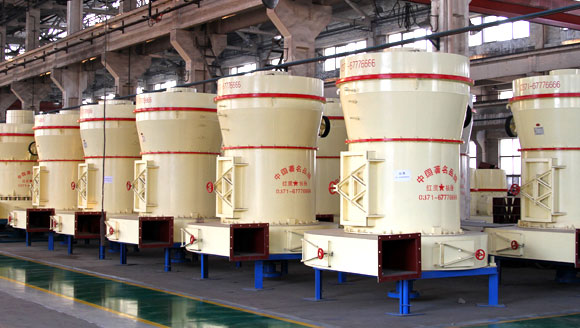

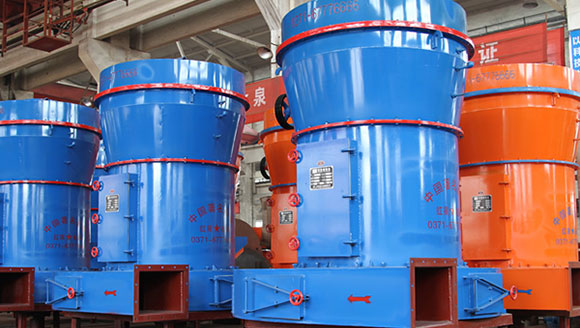

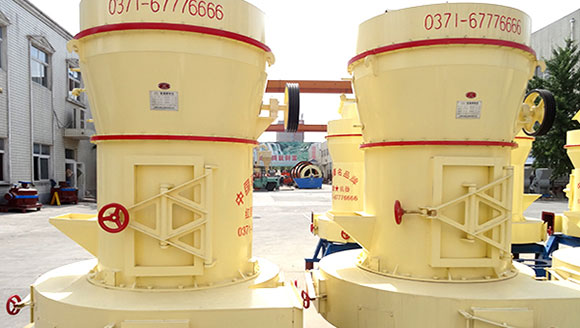

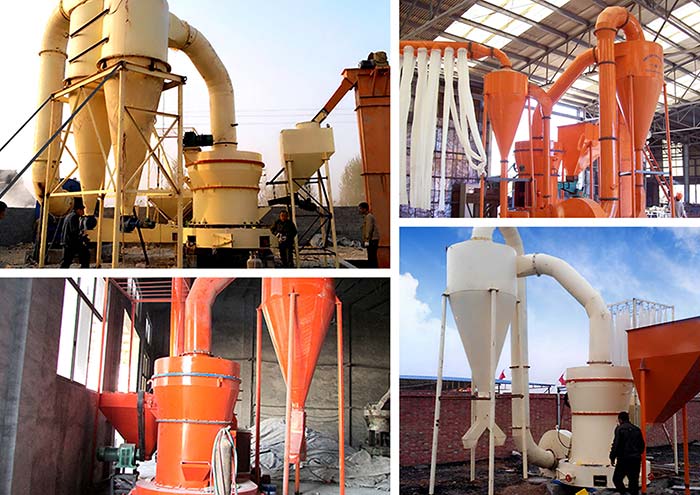

Grinding Mill

The Handling Materials and Function of Grinding Mill:

Grinding mill is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, talc etc, totally more than 100 kinds of materials. Product fineness can be controlled between 325~2500 mesh (47~5 micron).

The Performance Characteristics of Grinding Mill:

1. The plant is stable and highly automatic.

2. Inner lining and grinding media can be changed according to customers’ request, such as high manganese steel, silica, ceramics, etc.

3. Fine powder size is even and can be adjusted.

4. The system is low trouble rate, and can be operated continuously.

Advantages of Grinding Mill from Hongxing Machinery

1. Grinding machine has wide application ranges compared with airflow mill.

2. Compared with other grinding mills, the grinding force of the grinding roll of grinding mill is improved by 800-1200Kg under the high pressure spring.

3. Grinding machine saves more energy. When the output and the fineness are the same, the energy consumption of this system is only one third that of the airflow mill.

Inside the grinding room of the micro powder mill, the grinding roll assembly hangs on the cradle of the grinding roll through the corss arm. The cradle of the grinding roll, principal axis and the relieving tool post are fixed and connected and the pressure spring tightly presses on the outside end of the cantilever of the bearing room of the grinding roller through the tension bar. The corss arm bearing is the supporting point, and the grinding roll is tightly pressed to the surface of the inner circle of the grinding ring through the spring pressure. When electro motor rotates through the transmission device, the relieving tool on the relieving tool post and the grinding roll will synchronously rotate, and the grinding roll also rotates around itself while rolling on the surface of the inner circle of the grinding ring, and the analytical engine drives the impeller to rotate through the transmission device, and the adjustment of the speed of the analytical engine will determine the fineness of the final powders.

Technical data

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding  size（mm）	≤15	≤15	≤20	≤25	≤25	≤25	≤25	≤25	≤30
Size of finished  product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of  different material  fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed  of central  shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of  pulverizing  ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of  pulverizing  ring（mm）	150	210	250	270	300	300	310	410	450
Height of  pulverizing  roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	30	4-37	90	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5
