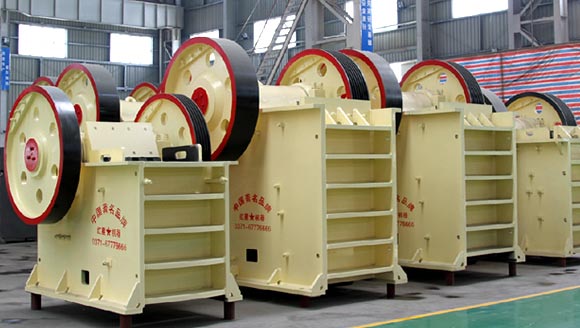

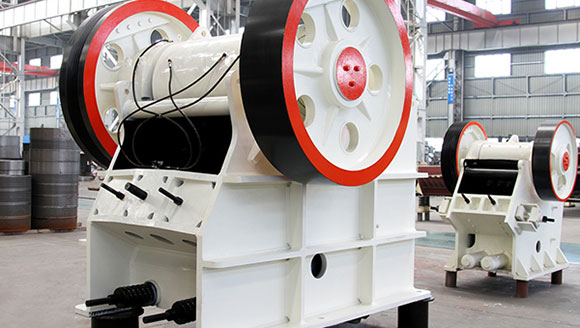

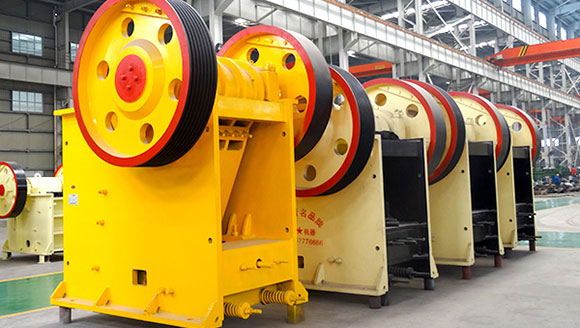

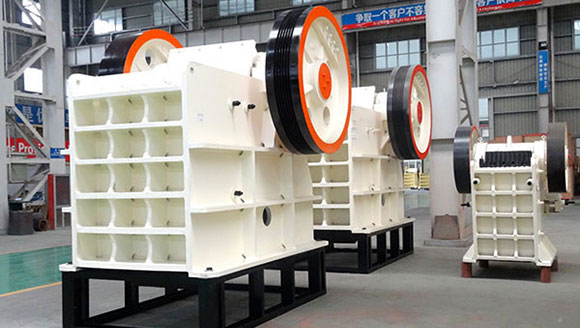

Crusher Plant

Processing capacity: 5-2200t/h

Feed opening: 150×250-300×1300mm

Feeding size: 125-250mm

Applied material: limestone, fly ash, coal powder, slag, clay.

  • Photo
  • video

The Handling Materials of Crusher Plant:

Crusher plant can process some materials such as pebble, calcite, granite, quartz, concrete, dolomite, iron ore, limestone, iron ore, coal, construction waste, basalt, sandstone, rocks, ore, glass, cement clinker and some metal.

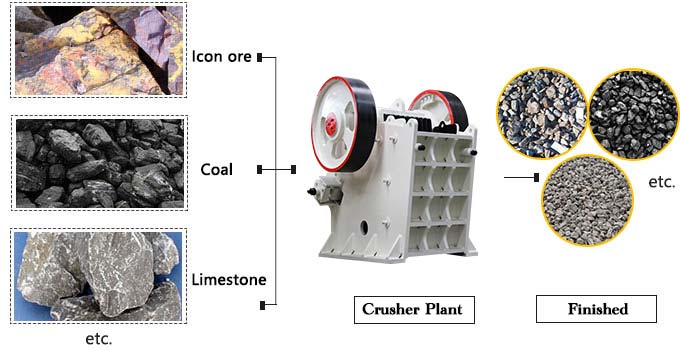

The Handling Materials of Crusher Plant

The Application and Features of Crusher Plant:

Crusher plant is ideally suitable for primary and secondary crushing, which is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and which has the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of this crusher plant is up to 320 Mpa.

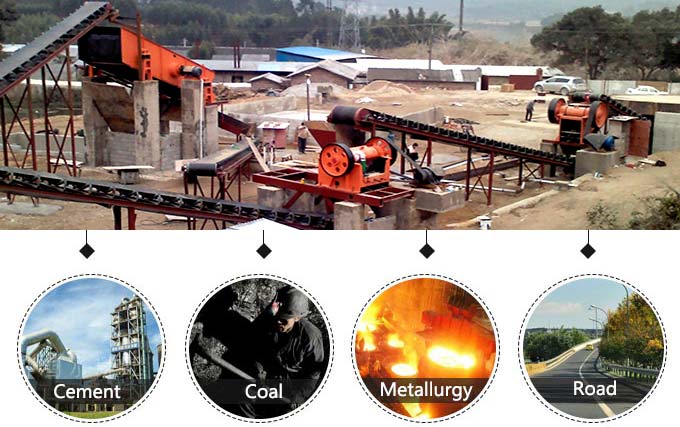

The Application and Features of Crusher Plant

The Application and Features of Crusher Plant:

Crusher plant is ideally suitable for primary and secondary crushing, which is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and which has the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of this crusher plant is up to 320 Mpa.

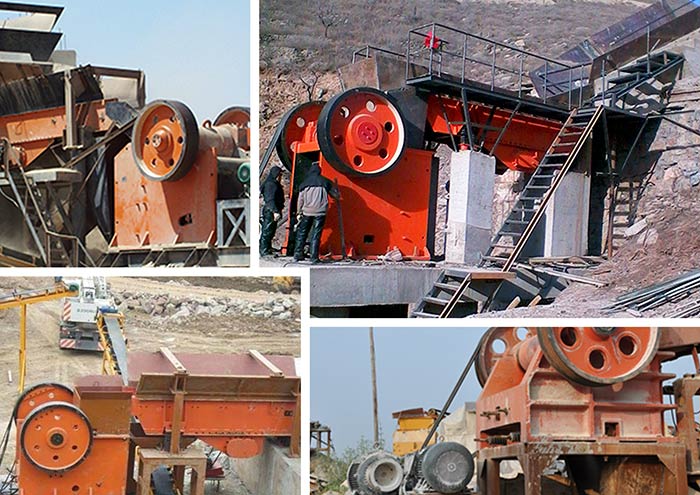

Crusher Plant

The Working Process of Crusher Plant:

The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. The movable jaw board leaves the fixed jaw board under the action of pole and spring, and then the finished products come out from the crushing cavity.

Technical data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
