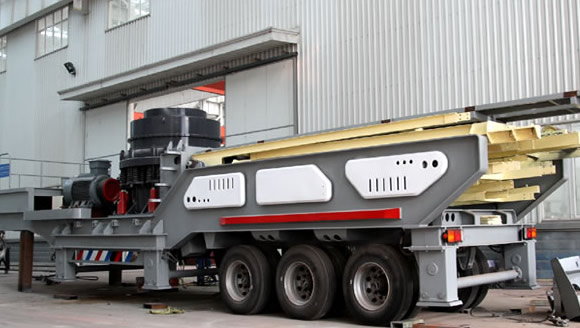

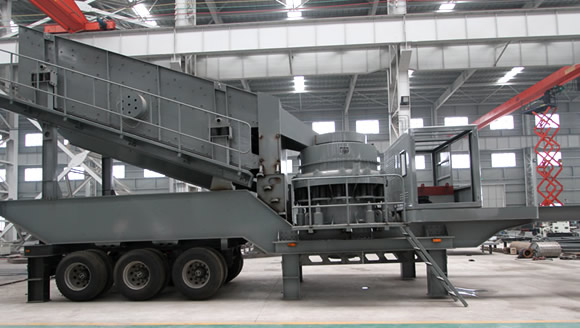

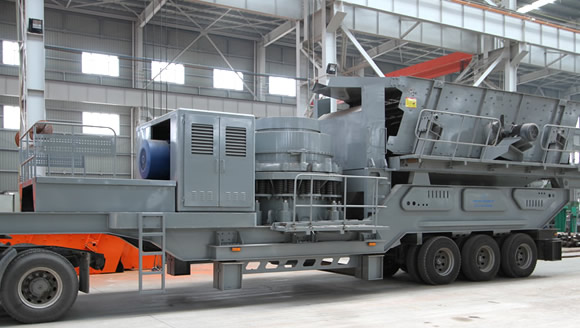

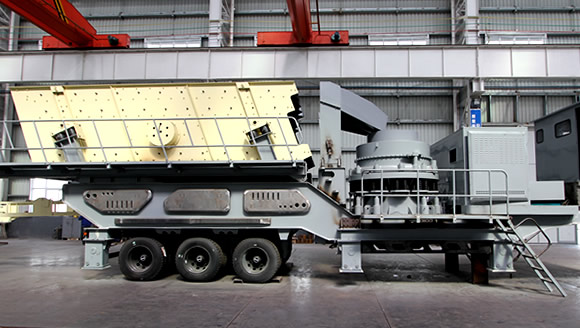

Mobile cone crusher

The Inner Structure and Application of Mobile Cone Crusher:

Mobile cone crusher is mainly composed of high efficient cone crusher, vibrating screen with perfect performance, belt conveyor, motor, controlling case and so on, which is applied in the industries of pharmaceutics, chemical, metallurgy, food and architecture.

The Performance Characteristics of Mobile Cone Crusher:

1. The integrating installation of the equipments makes strong coordination.

2. Bottom head of the truck-mounted coarse Portable crusher station is high.

3. Mobile cone crusher acts the function of fine Portable crusher.

1. Good mobility;

2. Compact structure, easy to use;

3. Cost savings, low cost;

4. Higher suitability;

5. Stable performance, easy maintenance;

6. Flexible configuration.

Material is evenly fed into the crusher by feeder, then be crushed by primary cone crusher, so as to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be transported through conveyor for continuous crushing.

Technical data

Model	HX3S185GYS300	HX3S216GYS400	HX3S216HP300
Transportation Length（mm）	14500	15000	16000
Transportation Width（mm）	3000	3000	4550
Transportation Height（mm）	4400	4500	17000
Maximum Length（mm）	17000	16000	4600
Maximum Width（mm）	3400	3900	6900
Maximum Height（mm）	5800	6500	4700
Weight（t）	34.5	49.5	41
Tyre Configuration	biax fitted	triaxial fitted	triaxial fitted
Tire Configuration	GYS300	GYS400	HP300
Feeding Belt Conveyor	B650×15M×2	B800×15M×2	B800×15M×2
Discharging Belt Conveyor	B650×14M	B800×14M	B800×16M
Conveyor Belt for final products	B500×15M	B800×6M	B650×15M×2
Under vibrating screen	B800×7M	B800×8M	B800×9M
Vibrating Screen Model	3yk1854	3Yk2160	3Yk2160
