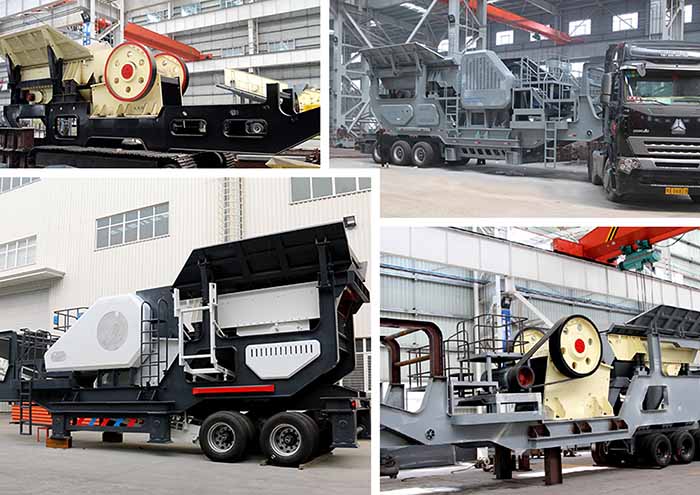

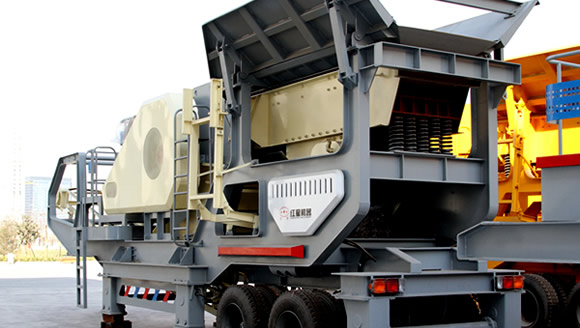

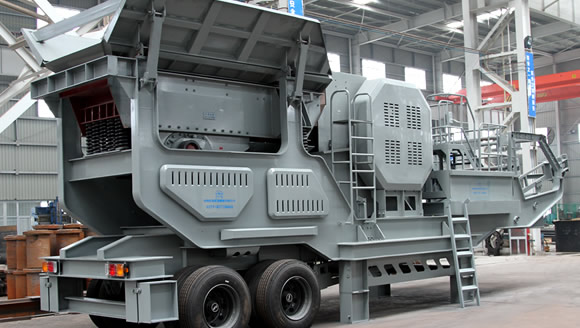

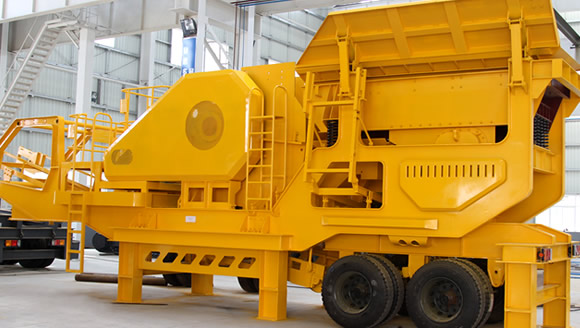

Mobile jaw crusher

The Application and Function of Mobile Jaw Crusher:

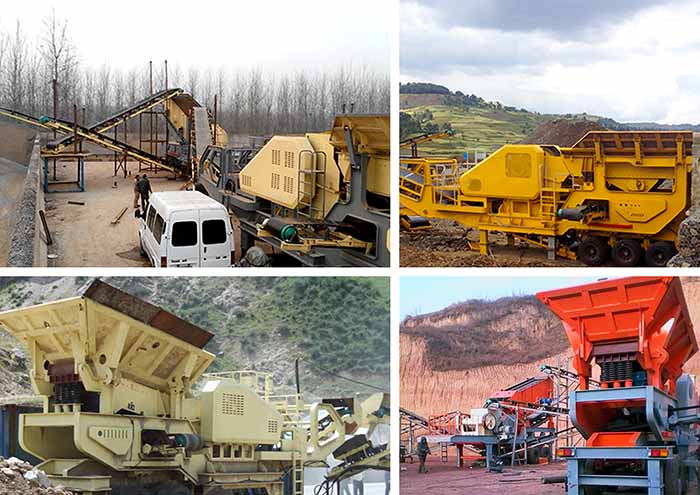

Mobile jaw crusher is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.

The Performance Characteristics of Mobile Jaw Crusher:

The Mobile jaw crusher has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.

1. The feeder can presort fine material, and the automation of silo door can control the direction of material feeding.

2. The conveyor angle can be adjusted, flipped and folded, to extend operating conditions and facilitate transport.

3. The vehicle structure is with streamlined design, and reasonable and compact mechanical optimization structure.

7. The stabilizer blade can realize full hydraulic lifting, which is flexible and easy to operate.

Materials are evenly transported into the crusher by feeder, then be crushed by jaw crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be discharged and transported through conveyor for continuous crushing operations. The circular vibrating screen of jaw mobile crusher can be removed according to the actual production needs, to achieve the initial crushing of materials. The wheel mobile impact crusher is convenient and flexible to be used together with other crushing equipment.

Technical data

Items	HX938E69	HX935PF1214	HX1142HD98	HX1142PF1315	HX1142HD110
Vibrating Feeder	ZSW-950×3800	ZSW-950×3800	ZSW-110×4200	ZSW-110×4200	ZSW-110×4200
Jaw Crusher	PE600×900	PF1214	HD98	PF1315	HD110
Main belt conveyor	B800×8.5M	B800×8.5M	B1000×9M	B1000×9M	B1000×9M
Discharging height of main belt conveyor（mm）	3200	3200	3500	3500	3500
Side-opening Belt conveyor(Optional)	B450×3M	B450×3.2M	B500×3.5M	B500×3.5M	B500×3.5M
Discharging height side-opening belt conveyor（mm）	2800	2800	3100	3000	3100
Power of genset（kw）	180	250	200	300	250
Transportation length（mm）	12000	12000	13600	13600	14600
Transportation width（mm）	3100	3100	3100	3100	3300
Transportation height（mm）	3650	3650	4500	4500	5000
Weight（mm）	43.5	50	59	59	67
Working length（mm）	12100	12100	13500	13500	15200
Working width（mm）	3100	3100	3100	3100	3300
Working height（mm）	4100	4100	5100	4800	5500
