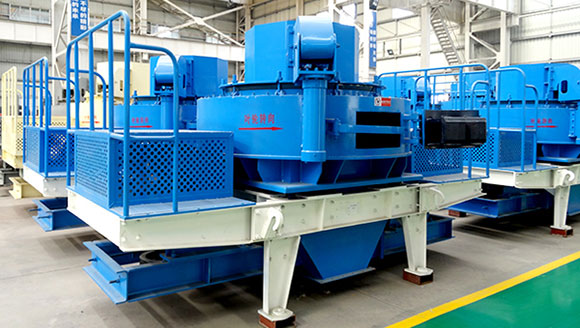

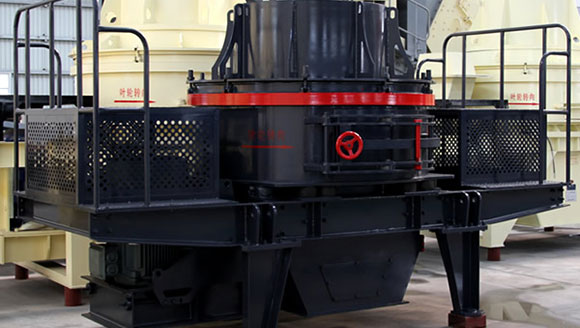

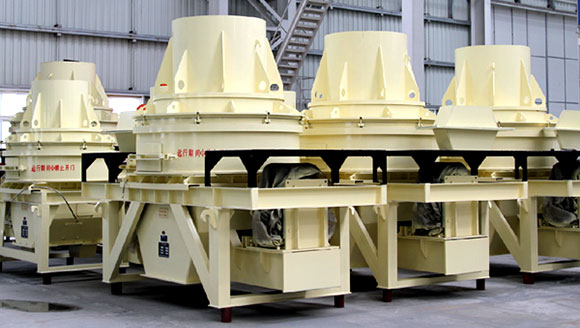

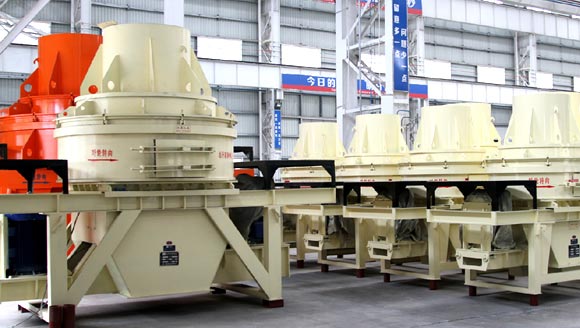

Sand Maker

The Handling Materials and Application of Sand Maker:

Sand maker is being used to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc. Which can be widely used in various metallic and nonmetallic ores, cement, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. with best feeding size from 30mm to 50mm.

The Description and Function of Sand Maker:

Sand maker is especially suitable for sand making and stone reshaping, which is generally being used in the third crushing. Sand maker provides high quality sand aggregate for highway, high-speed railway, high buildings, municipal construction, hydroelectric dam construction and mixing station. It is a perfect combination of unique rotor structure design, wear-resisting material technology, crushing speed optimization and hydraulic design.

1. This machine is a new type medium and fine stone crushing machine developed in the 1990s and also the machine type that is widely used to replace cone crusher, double-roll crusher and ball mill in the world.

2. It has novel and unique structure and stable operation.

3. This machine is low in energy consumption, high in output and big in crushing ratio.

4. The equipment is small in size, simple and easy in operation and convenient in installation and maintenance.

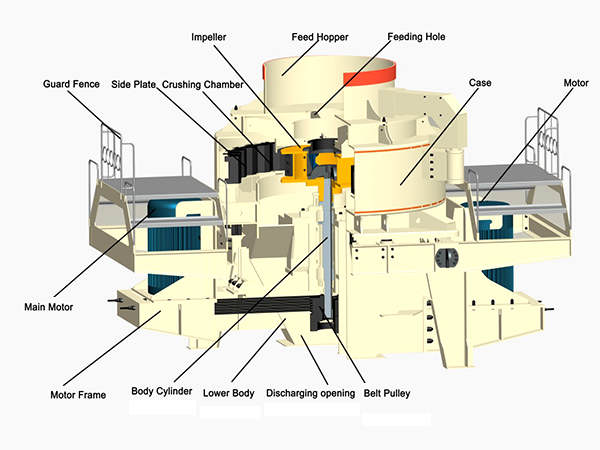

Material vertically falls down into high rolling impeller cavity through the upper part of machine, and it hits and crushes another part of material that distributing around the impeller with umbrella form under great centrifugal force. After hitting each other, they force a vortex between impeller and shell, hitting each other several times; finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported by conveyor belt, and those overlarge material will be sent back to sand maker to be re-crushed.

Technical data

Model  specification	Max.feeding  size （mm）	Power （kw）	Rotation  speed of  impeller （r/min）	Capacity （t/h）	Overall  dimension （L×W×H） （mm）
HX-06	35	2P   37-55	2000-3000	12-30	2500×1620×2600
HX-07	45	4P   55-75	1500-2500	25-55	2700×1760×2800
HX-09	50	4P   110-150	1200-2000	55-100	3900×2000×3070
